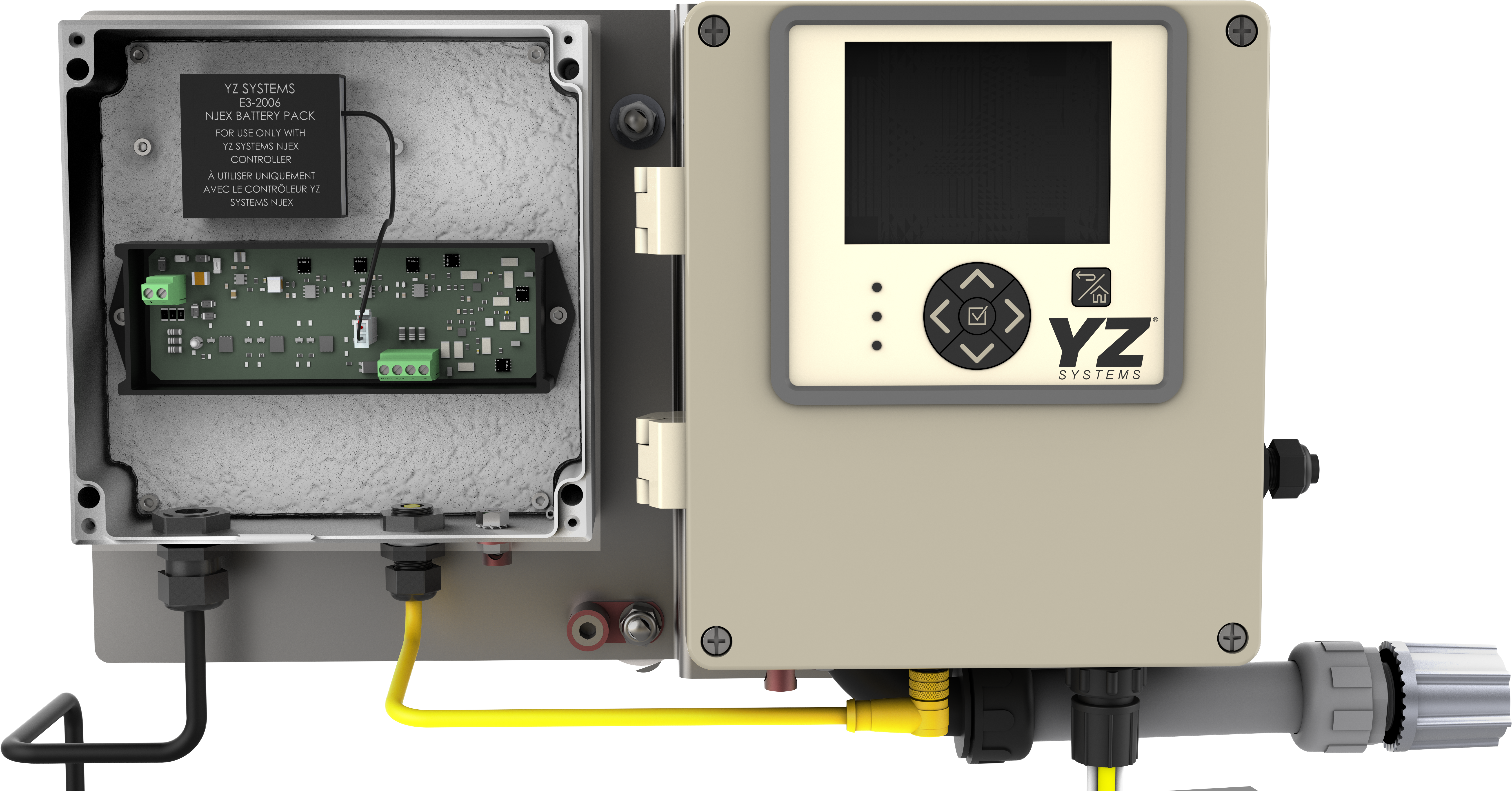

- Intrinsically safe N-400 Controller
- Odor free operation
- Closed loop prime and purge
- Remote communication via Modbus
- Alarm or odorant pulse output
- Memory module to record odorant output, alarms, setting changes, etc.
- Built in redundancy for dual units
- Maintenance wizard to guide through maintenance steps
- Class I, Div. 1 or IECEx/ATEX Zone 1 hazardous area approvals
- Backup battery in the case of power loss
- Proportional to flow or time

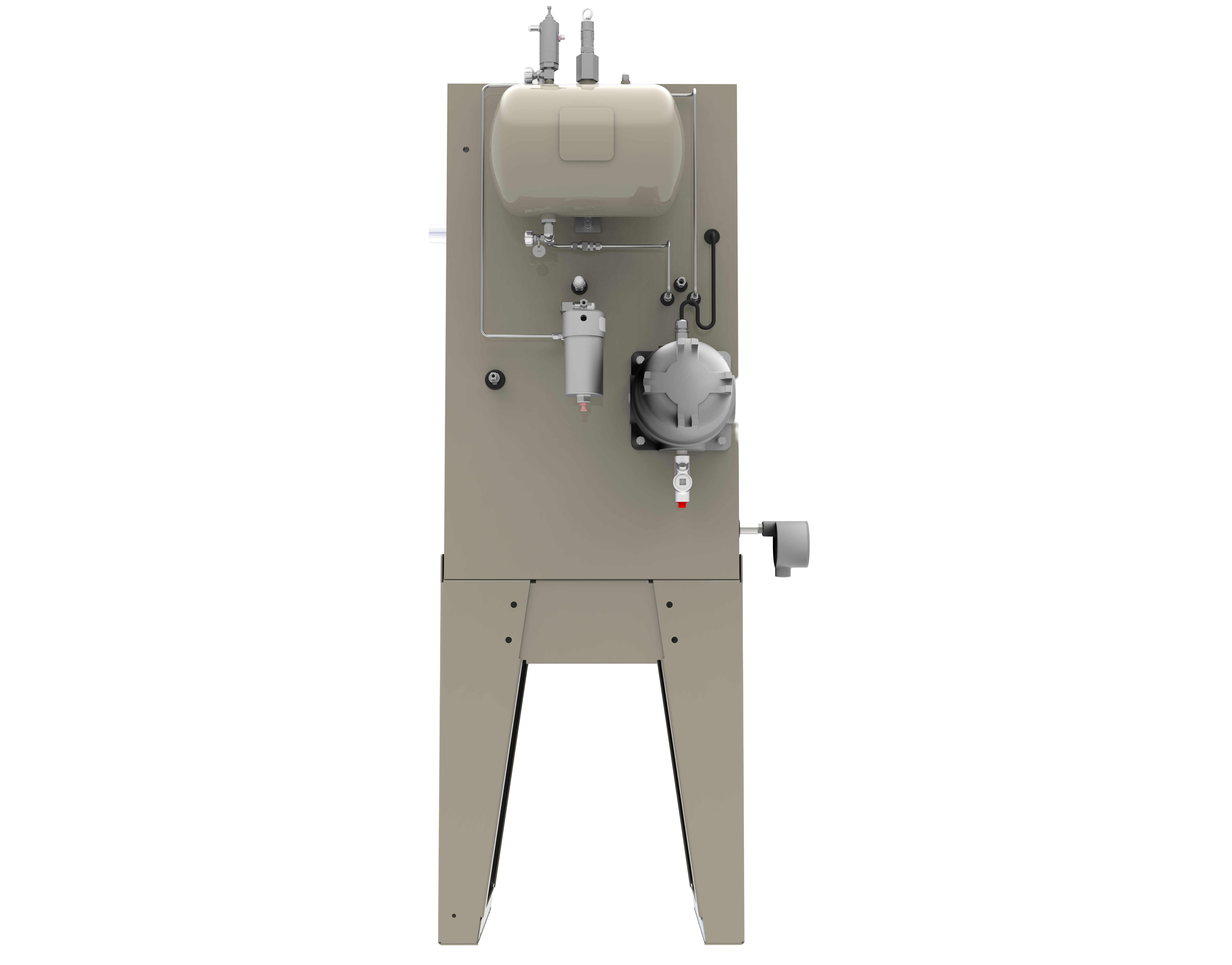

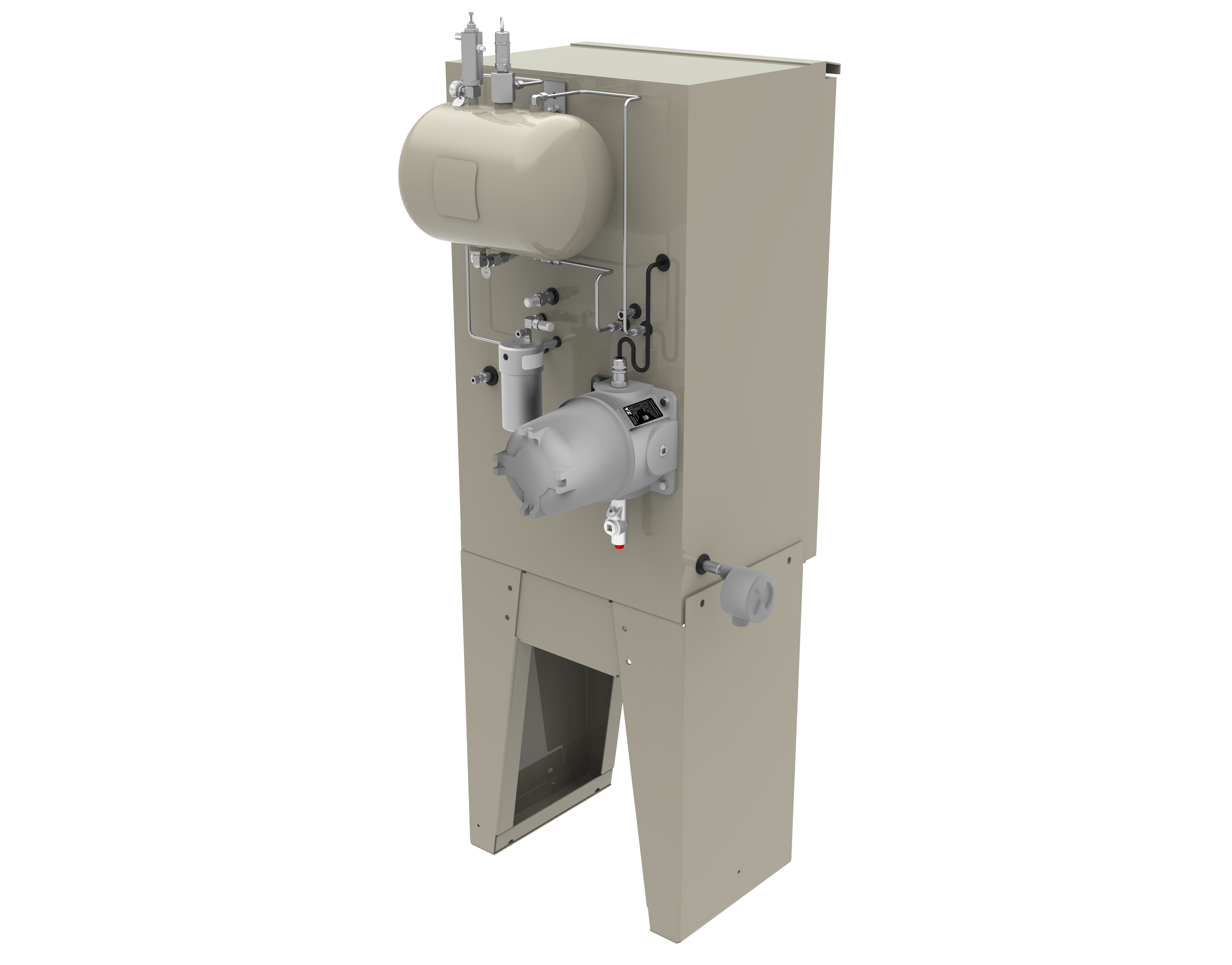

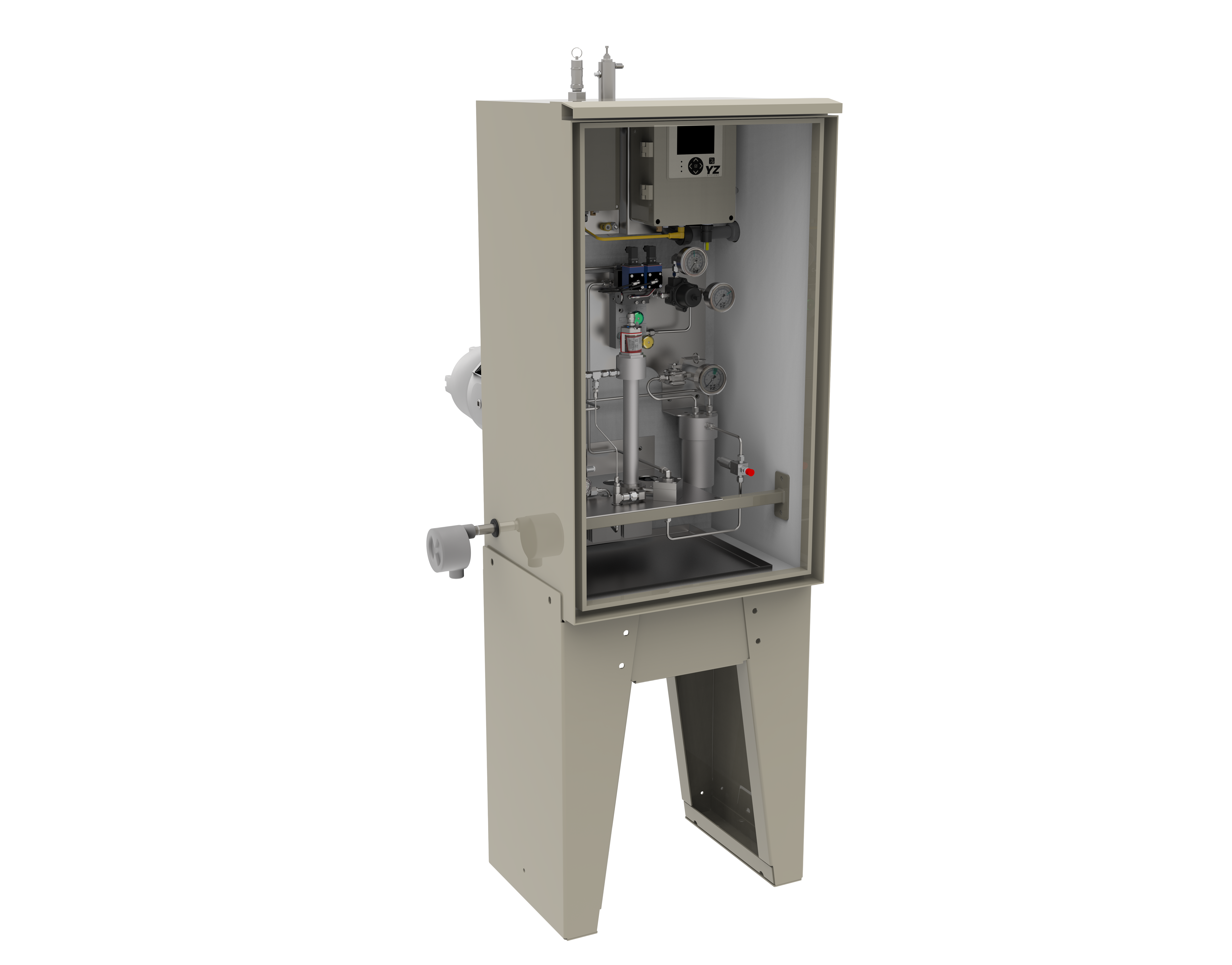

The 6400 NJEX natural gas odorizer is the trusted NJEX mechanical platform with the new, intuitive N-400 controller and updated electronics. The 6400 NJEX is designed to provide precise odorant injection for low flow applications. The system utilizes a custom verometer, flow meter, to verify odorant injected. Injection rates, alarms, and parameter changes are saved on a memory module for easy historical data recording.
- Maximum odorant output: 1.76 gallons/day, 6.7 liters/day
- Maximum operating pressure: 1440 psig, 99.28 bar
- Operating temperature: -4F°-140°F, -20°C-60°C (Heated options available for cold weather)
- Power supply: 120/240 volt, 50/60Hz AC or solar
- Backup battery life: approx. 2 weeks dependent on stroke rate and temperature
- Gas flow input signal: pulse (dry contact or voltage)
- Single or dual configuration for redundancy
- English or Metric units
- Controller available in English, French, Spanish, German, Portuguese, Mandarin, Indonesian
- 20 to 20,000 gallon tank options (standard offering)
- Larger or custom sizes upon request
- Containment skid (110% capacity)
- Power options – solar or AC
- Insulated polyester enclosure
- Sentry software to read memory module
