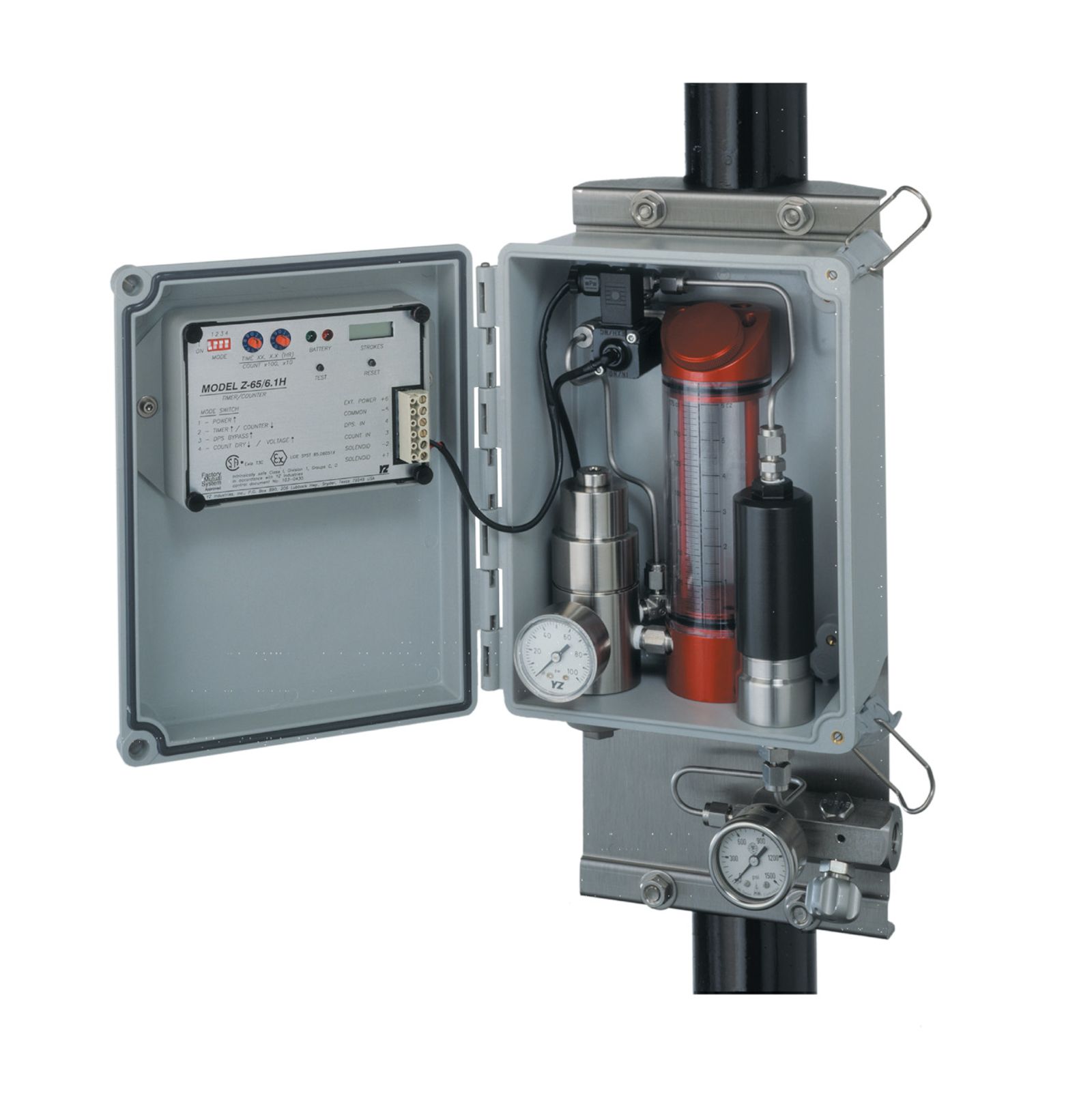

Cyclone Meter Lubrication System

Capable of accepting pulses directly from a meter, index pulser, electronic corrector, or flow computer, the Cyclone can operate in Proportional-to-flow or time-based injection modes. Further refinement of the time based mode adds the capability of control from the YZ DPS-2 — Differential Pressure Switch allowing lubricant injection only when flow occurs in the pipeline.

  • Provides systematic lubrication
  • Versatile controller operates time-based or flow-based
  • Durable NEMA 4X fiberglass reinforced polyester enclosed to protect from the elements
  • On board LCD stroke & LED battery indicator
  • Adjustable filter/regulator
  • On board 6 oz. oil reservoir
  • Long life potted electronics
  • Intrinsically safe for Class I, Group C, D; FM approved, and CSA & Cenelec Certified
  • Convenient termination block for pulse and differential pressure switch input
